How To Determine Lug Nut Size

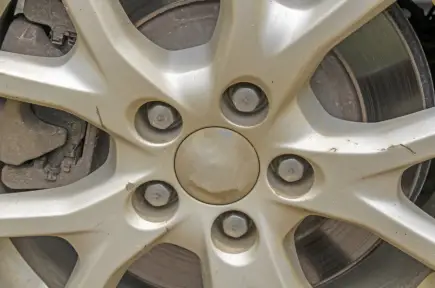

At one point, you may have to change the lug nuts on the wheels. The lug nuts, although small, have a crucial role in guaranteeing our safety when driving on the road. Wheels on most passenger vehicles are fitted using four or five lug nuts (to match the number of lug nut studs). The challenge for most drivers is how to determine lug nut sizes when going for aftermarket alternatives or replacing damaged ones.

It is advisable to replace a damaged lug nut to ensure safety on the road and avoid traffic penalties. Damage to lug nuts may happen due to wrong torquing and rusting. Several lug nut brands and sizes exist in the market, and drivers need to know how to determine lug nut sizes. Every lug nut has a specific design to ensure it fits perfectly into the lug nut hole.

Specifications of a lug nut

Lug nut manufacturers use several components to specify lug nut sizes. Knowing what these components mean and how to measure them makes it easy to make purchasing decisions. These lug nut specification components are:

• Thread pitch

• Thread size

• Length of the nut

• Lug nut seat type

• Surface finish/color/appearance

Here is a broader description of these components and their relevance when determining lug nut sizes.

Thread Pitch

Lug nuts are categorized as metric or non-metric. This classification is vital when determining the number of lug nut threads per specific unit of measurement. The pitch of the lug nut represents the distance between successive threads of the lug nut. For example, the pitch for metric lug nuts is defined using the distance between threads in millimeters. The pitch for non-metric lug nut threads is specified in inches. The pitch of the lug nut should match that of the lug nut stud.

Vehicle manufacturers specify the recommended thread pitches for OEM studs. If the driver changes the wheel and is looking for an aftermarket lug nut, they should ensure the pitch for the newly acquired lug nuts match those of the stud.

Thread Size

The thread size of a lug nut is the metric or imperial measurement of the lug nut stud outer diameter. Lug nut thread sizes are available in standard dimensions for easy fitment. Drivers can determine the thread sizes using readily available gauges at dealerships selling spare parts and other car accessories.

Although lug nuts are available in standard sizes, drivers should leverage online tools or consult the owner’s manual to determine the correct lug nut sizes. Examples of standard thread sizes are:

• 10 mm, 12 mm and 14 mm (metric measurement)

• 7/16", 1/2" and 5/8" (Imperial thread measurement)

Length of the nut

Why does the length of the lug nut matter? Simple - the lug nut should complete specific thread engagements for the wheel to tighten. Using a shorter lug nut may mean driving around with a poorly-tightened wheel. Additionally, you risk damaging the cap, increasing the probability of stripping.

When choosing an aftermarket lug nut, drivers should ensure the lug nuts have the right length and internal and outer dimensions. The dimension of the lug nut also caters to the shank diameters and depth for particular lug nut types. Choosing the right lug nut dimension is essential for correct fitment - it contributes to better driving safety and easy wheel installations and repairs.

Lug nut seat type

Every lug nut makes contact with the wheel to achieve the required tightness. Lug nuts have specific designs making them appropriate for use with particular wheels. The seat type determines the tightness due to the contact between the lug nut and the wheel. The different types of lug nut seats are:

• Conical seat

• Ball seat

• Flat seat

• Mag seat

Some seat types require additional fasteners to achieve the recommended tightness. For example, mag-type lug nuts require separate washers.

Surface finish/color/appearance

Lug nuts should complement the physical appearance and aesthetic appeal of the wheels. Surface finish considerations are more evident for drivers using aftermarket wheels. Some lug nuts have shiny surface finishes that are visible from afar. Manufacturers use several color combinations and surface treatment methods to maximize the aesthetics associated with lug nuts.

Determining the right lug nut sizes

Now that we know the terminologies associated with lug nuts, how does one determine the right lug nuts? Here are a few steps to follow.

Verify the seat type

How is the hole of the lug nut designed? Does the lug nut rest on a flat surface? Is it conically shaped? Is the hole slightly extended? Check the seat type of your wheels. Most wheels have a tapered lug nut hole.

Knowing the seat type ensures you buy a well-fitting lug nut. It will rest perfectly against the wheel and provide the requisite tightness.

Confirm thread sizes

Information on thread sizes is available in the owner's manuals. Where the information is unavailable, you can measure the width of the lug nut stud. Alternatively, you can carry one of the lug nuts to the store for easy comparison and measurement using standard gauges.

Measure thread pitch

Check the recommended number of threads per unit length. Find the recommended lug nut pitch in the owner’s manual or online resources.

Final words

Every vehicle uses a specific lug nut size. However, determining the correct lug nut size may be a hard nut to crack if the driver is unaware of lug nut terminologies and how to measure them. Determining the right lug nut sizes makes the replacement process easier. It also reduces future repairs caused by poorly-sized nuts and forced fitment.

FAQs

What lug nut sizes do I need for my car?

Information on the preferable lug nut sizes is available in the owner’s manual. However, drivers can measure the diameter of the stud to find the matching lug nut sizes. Lug nuts sizes are available in standard metric and imperial dimensions.

Is the length of a lug nut significant?

The length of the lug nut affects your safety on the road. A shorter lug nut does not have enough thread engagement, meaning lower wheel tightness. A lug nut that is too long requires more torquing and can damage the wheel stud.
