Are All 5-lug Rims the Same Pattern?

Finding a perfectly fitting set of wheels can be a daunting task. You need to keep track of many parameters, like wheel offset, size, and bolt pattern. The tricky part is that even when the wheels have the same number of bolts, it doesn't mean that they share the same pitch circle diameter. So no, not all 5-lug patterns are the same.

Key Takeaways

• 5-lug rims vary in their pitch circle diameter (PCD), making them non-interchangeable even if they both have 5 lugs. Different car brands use distinct 5-lug bolt patterns.
• Accurate measurement of the 5-lug pattern, especially the PCD, is crucial for a proper wheel fit. A caliper is the best tool, measuring from the first to the third lug.
• Even though some 5-lug patterns are common among vehicle brands, they're not universally interchangeable. Wheel offset and size also determine compatibility, so one should consider all-wheel specifications before swapping or fitting.

The only thing that ties them all together is that this particular bolt pattern has a consistent number of bolts. Typically, 5-lug wheels are used for mid-sized cars because this pattern allows them to handle more pressure. Five lugs can demonstrate good performance on heavy vehicles and guarantee better stability if one of the lug nuts comes loose.

Many vehicle manufacturers tend to use similar lug patterns in their cars to simplify the manufacturing process. This also gives car owners more opportunities to swap wheels between different car models and broadens their choices.

What Is A 5-lug Pattern?

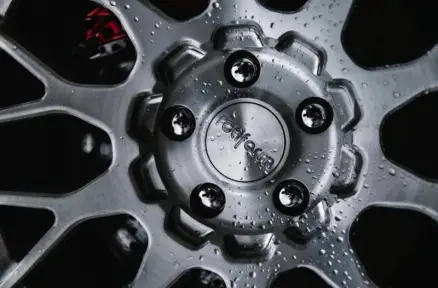

The 5-lug pattern is an arrangement of wheel studs or lug holes on the vehicle's wheel hub. In this particular pattern, there are 5 evenly spaced lug holes arranged in a circle on the hub, allowing the wheel to be secured to the hub using five lug nuts or bolts.

When the match between a wheel and a hub is perfect, each hole corresponds to a lug stud that extends from the wheel hub. This 5-lug pattern design provides stability and strength to the connection and ensures safe driving and efficiency.

And that's why it's more common to see a 5-lug wheel on larger and heavier vehicles. While the 4-lug wheels are typically seen on smaller vehicles.

This 5-lug pattern is an odd-numbered bolt pattern, and it requires a special technique to measure it. In a star-shaped pattern, it's impossible to find the opposite lug nut. So you will have to measure from the center of the first lug to the back side of the third one on the circle.

Are All 5-lug Rims Universal?

No, 5-lug rims are not universal, even though there are many car models with similar patterns. The various 5-lug bolt patterns have a specific arrangement of lug holes on the wheel hub. Each of these bolt patterns has the same number of lug holes but different distances between them.

There are no universal bolt patterns because there is such a variety of car shapes and sizes. Usually, you can only find identical bolt patterns on cars with a similar frame. The difference in PCD comes from the necessity to distribute weight properly.

That's why there is such a long list of different 5-lug patterns.

5-lug Patterns

5 Steps to Measure a 5-lug Pattern

The best way to measure a bolt pattern is by using a caliper. A ruler does not help you with accuracy that much. And you will need a very precise measurement to find the perfect fit.

• Measure the distance between the center of the first and the back of the third lug holes to find the pitch circle diameter or PCD.
• Put the number of bolts first and then your PCD. You will have something like this "5×114.3" with your pitch circle diameter, of course.
• If measured in mm, divide by 25.4 to convert to inches or find a bolt pattern chart in mm.
• Double-check for accuracy.
• Use correct measurements to find compatible vehicles for a wheel swap, or confirm that your measurements correspond to your car’s specifications.

Common 5-lug Patterns

In cars with 5-lug wheels, there are two common bolt patterns called "5x100" and "5x115." The 5x100 pattern is used in cars like Toyota, Volkswagen, Subaru, MG, and Skoda. The 5x115 pattern is found in vehicles from brands such as Buick, Cadillac, Chevrolet, Chrysler, Dodge, and Pontiac. These patterns are important because they help wheels fit properly on different cars made by these companies, making sure everything works together nicely.

Vehicles with 5×4.5 Bolt Pattern

Different car manufacturers use this exact pattern for their models. This bolt pattern, also known as 5×114.3 (when measured in millimeters), is quite common.

This includes multiple generations of the Ford Mustang, certain editions of popular Honda models like Accord and Civic, specific versions of the Nissan Altima, certain editions of the Toyota Camry, various Hyundai Sonata models, and specific editions of the Jeep Wrangler.

These vehicles are among the many that utilize this common bolt pattern for their wheels. But the bolt pattern alone cannot make them fully interchangeable. It also takes matching offsets, sizes, etc.
